ES AUDIO/VIDEO RECEIVER:
Elevated Performance for All
Redesigned with build quality in mind
Learn More
Redefined video technology to power your theater
Learn More
Awe inspiring sound for all your entertainment
Learn More
Built for custom install
Learn MoreRenowned ES Quality
Redesigned with build quality in mind
*Image only applies to STR-AZ7000, STR-AZ5000ES, and STR-AZ3000.
Newly Designed Frame Beam Base Chassis
The chassis of the ES model has been fundamentally revised: the overall thickness has been increased for improved rigidity, and the structures of the transformer base and other weight-bearing parts have also been redesigned to improve the instantaneous power and crispness of the sound, when compared to a conventional chassis.
*Only applies to STR-AZ7000ES, STR-AZ5000ES, STR-AZ3000ES
Newly Designed Foot
Designed with an offset screw position to both eliminate the resonance point and avoid frequency-specific, vibration-inducing resonance transmission to and from the transformer, the foot also contains additional ribs for increased rigidity and improved resonance control.
*Only applies to STR-AZ7000ES, STR-AZ5000ES, and STR-AZ3000ES.
Updated Heat Sink
A more uniform shape applied to the heat sink enables the amplifier circuit to withstand unwanted vibration. The heat sink bracket also shields the digital circuit from radiation, for sound quality that has more stability and clarity.
*Only applies to STR-AZ7000ES.
Refreshed Digital Circuit Board
Metal ES-grade frames both secure the circuit board and protect it from vibration caused by speaker sound pressure.
New DAC enables 32-bit operations
Digital PCM signal input is processed at 32-bit and converted to analog by the DAC, while DSD signal input during direct mode is natively input to the DAC and converted to an analog signal.
Improved analog power for DAC
The DAC analog power supply uses a low- noise power supply IC to ensure that hi-fidelity performance is achieved.
Redeveloped digital section
The new digital section enables all signal processing to be performed on a single chip while also providing lower impedance, increased capacitance, and better stability.
Buffer amp for DAC
A new DAC analog output filter circuit was designed utilizing a JFET input op-amp yielding a 20db improvement in noise floor. The phase rotation was shifted to a higher frequency, expanding the bandwidth and improving sound clarity for wide-bandwidth sources like high-resolution audio.
Newly developed Sony exclusive integrated circuit
A Sony-exclusive integrated circuit was developed to improve all amplification functions.
New Capacitor for High Power
In order to increase the power, a new block capacitor was developed and the design of the power amplifier has changed. Based on our long experience in the development of sound quality capacitors, we also emphasized the selection of materials and manufacturing methods to create a component that satisfies us in terms of sound quality.
*Only applies to STR-AZ7000ES.
New large-capacity power transformer
In order to achieve high sound quality in the large power transformer, the core material of the power transformer has been re-selected to achieve high sound quality.
*Only applies to STR-AZ7000ES.
Lead free ES solder
Applying years of sound engineering and testing experience, Sony has developed an ES- grade solder. A high-purity tin base combines with small amounts of specially chosen metal elements for a unique alloy mix that enables a quality signal and exceptional sound.
Redefined video technology to power your theater
8K & 4K/120 HDMI Connectivity
Enjoy the latest HDMI technology with support for 8K & 4K/120 video sources.1,4,3
HDMI 2.1
While enabling higher quality video output and reduced latency from input devices like game consoles, HDMI 2.1 also provides support for Auto Low Latency Mode (ALLM), Variable Refresh Rate (VRR).3,4
Supports Dolby Vision, HDR10, and Hybrid Log Gamma, and IMAX Enhanced
A new technology developed by Sony, Digital Cinema Auto Calibration IX precisely corrects the distance, angle, sound pressure, and frequency response of each speaker that’s connected to create the ideal sound field for any home theater setup.
Awe inspiring sound for all your entertainment
Support for the most advanced object-based audio formats
With support for Dolby Atmos®, Dolby Speaker Virtualization, DTS:X®, DTS Virtual: X, and DTS: X Pro, to deliver a truly elevated object-based surround-sound experience.
*DTS: X Pro only applies to STR-AZ7000ES
360 Spatial Sound Mapping
Experience true immersion. Sony’s exclusive 360 Spatial Sound Mapping technology reproduces a physical sound field that can adapt to your environment and create an experience that feels like a large movie theater or concert hall.13
Digital Cinema Auto Calibration IX
A new technology developed by Sony, Digital Cinema Auto Calibration IX precisely corrects the distance, angle, sound pressure, and frequency response of each speaker that’s connected to the STR-AZ7000ES to create the ideal sound field for any home theater setup.
Hi-Res Audio & 360 Reality Audio
Enjoy music the way the artists truly intended with High-Resolution Audio for crystal clear precision or discover a new way of listening with 360 Reality Audio for a truly immersive live concert or studio session experience.6
Acoustic Center Sync
Acoustic Center Sync matches the audio to your compatible BRAVIA TV.12
Dual Center Speaker
Dual Center Speaker works with a second speaker to more accurately replicate sound with large screens.
**Only applies to STR-AZ7000ES and STR-AZ5000ES
Center Speaker Lift
Center Speaker Lift Up raises the sound from the center speaker to match what’s on the TV.
Go Wireless

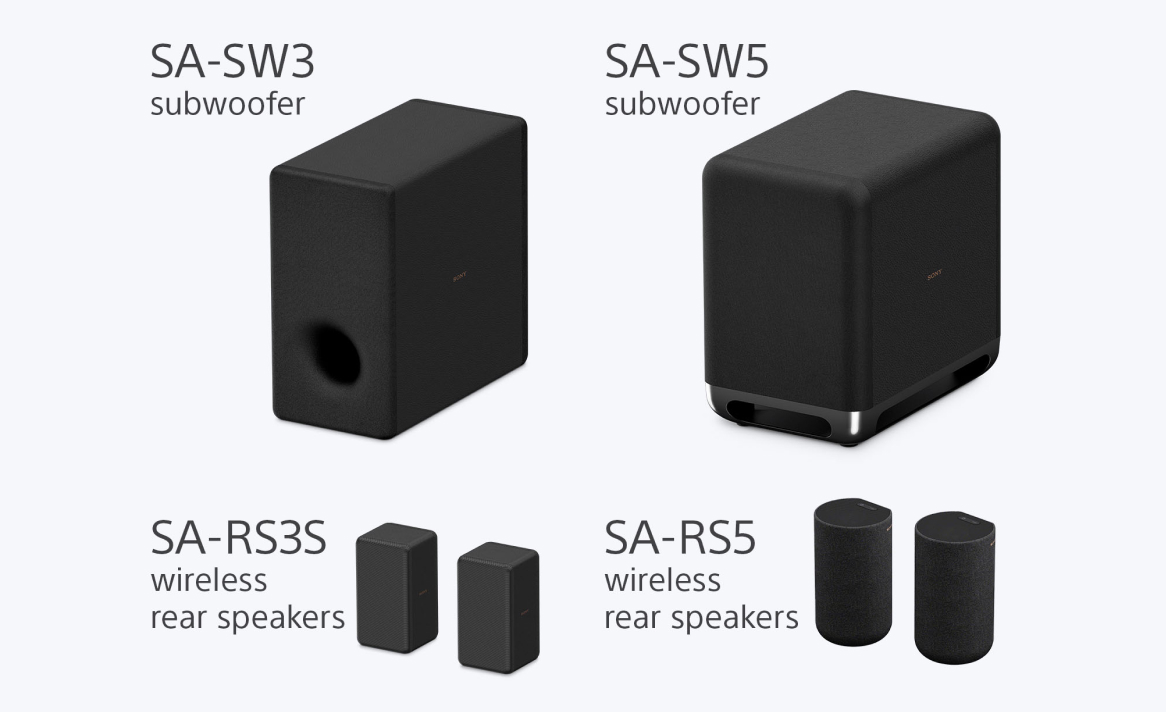

Sony’s SA-RS3S & SA-RS5 wireless rear speakers and SA-SW3 & SA-SW5 wireless subwoofers (Sold sep.) are compatible with the STR-AZ7000ES. Two subwoofers of the same model may be connected simultaneously to the receiver.
DSEE Ultimate
Using AI-based technology, DSEE Ultimate accurately upscales audio to near-high-resolution sound quality.
Easy Listening
Listen to all your favorite tracks with audio streaming via Bluetooth®,11 Wi-Fi, Chromecast built-in,7 Spotify Connect, and Apple AirPlay®.6
Works with SONOS
From the SONOS app you will be able to turn on your A/V Receiver, switch to the designated input source for playback, and control the volume of your A/V Receiver.5
Voice Assistant Compatibility
Connect to your home’s other devices, and use voice control to operate your receiver with Google Assistant.8
Compatible with Sony Music Center app
Control your receiver from your mobile device for operations like source selection, zone control, sound field control, volume control, media playback, and voice assistant setup.6
Roon Tested
Enjoy seamless integration with your Roon system for full access to all your music—including your digital files and streaming services—all in one place.6
Built for custom install
Support for Integration
With support for the leading control and remote monitoring systems like Control4, Savant, Crestron, and OvrC, these ES receivers are built for integration.6
Zone 2 & Zone 3
Flexible multi-zone distribution capability.
Flexible setup options
Setup can be performed either via the front panel or through the onscreen Graphical User Interface (GUI).
*Image applies to STR-AZ7000ES
Full Pre Outputs
STR-AZ7000ES and STR-AZ5000ES are equipped with full pre outputs for extended connectivity flexibility
*Image only applies to STR-AZ7000ES
USB Front Input with settings save option
Using the front mounted USB, you can easily apply system updates and during setup, save all receiver settings to a flash drive for backing up and porting over to another unit to replicate settings.
Three 12-volt triggers
Equipped with three 12-volt triggers for external peripherals, amplifiers, and more.
*Only applies to STR-AZ7000ES and STR-AZ5000ES
Three IR Repeaters
Three, IR repeaters (1-in, 2-out) for external device control.
*Image only applied to STR-AZ7000 and STR-AZ5000ES.
Ping Button
Ping button for easy IP recall on front panel of receiver.
*Only applies to STR-AZ7000ES, STR-AZ5000ES, and STR-AZ3000ES.
RS232C Port
RS232C port for control system configuration.
STR-AZ7000ES
Sony's flagship STR-AZ7000 13.2 CH 8K A/V Receiver featuring renowned ES Quality. With 150 watts,2 the STR-AZ7000ES delivers cinematic sound with crystal-clear music reproduction, object-based surround sound, and support for Dolby Atmos®, DTS:X®, and 360 Reality Audio.6
STR-AZ5000ES
11.2 CH 8K A/V Receiver featuring renowned ES Quality. With 130 watts,2 the STR-AZ5000ES delivers cinematic sound with crystal-clear music reproduction, object-based surround sound, and support for Dolby Atmos®, DTS:X®, and 360 Reality Audio.6
STR-AZ3000ES
9.2 CH 8K AV Receiver featuring renowned ES Quality. With 120 watts,2 the STR-AZ3000ES delivers cinematic sound with crystal-clear music reproduction, object-based surround sound, and support for Dolby Atmos®, DTS:X®, and 360 Reality Audio.6
STR-AZ1000ES
7.2 CH 8K A/V Receiver featuring renowned ES Quality. With 100 watts,2 the STR-AZ1000ES delivers cinematic sound with crystal-clear music reproduction, object-based surround sound, and support for Dolby Atmos®, DTS:X®, and 360 Reality Audio.6
Renowned ES Quality
60 years of ES heritage
Redesigned with build quality in mind
*Image only applies to STR-AZ7000, STR-AZ5000ES, and STR-AZ3000.
Newly designed Frame Buffer Board Chassis
The chassis of the ES model has been fundamentally revised: the overall thickness has been increased for improved rigidity, and the structures of the transformer base and other weight-bearing parts have also been redesigned to improve the instantaneous power and crispness of the sound, when compared to a conventional chassis.
*Only applies to STR-AZ7000ES, STR-AZ5000ES, STR-AZ3000ES
Newly Designed Foot
Designed with an offset screw position to both eliminate the resonance point and avoid frequency-specific, vibration-inducing resonance transmission to and from the transformer, the foot also contains additional ribs for increased rigidity and improved resonance control.
*Only applies to STR-AZ7000ES, STR-AZ5000ES, and STR-AZ3000ES.
Awe inspiring sound for all your entertainment
8K & 4K/120 HDMI Connectivity
Enjoy the latest HDMI technology with support for 8K & 4K/120 video sources.1,4,3
HDMI 2.1
While enabling higher quality video output and reduced latency from input devices like game consoles, HDMI 2.1 also provides support for Auto Low Latency Mode (ALLM), Variable Refresh Rate (VRR).3,4
Supports Dolby Vision, HDR10, and Hybrid Log Gamma, and IMAX Enhanced
A new technology developed by Sony, Digital Cinema Auto Calibration IX precisely corrects the distance, angle, sound pressure, and frequency response of each speaker that’s connected to create the ideal sound field for any home theater setup.
Redefined video technology to power your theater
Center Speaker Enhancements
Go Wireless
Compatible with Sony’s SA-RS3S & SA-RS5 wireless rear speakers and SA-SW3 & SA-SW5 wireless subwoofers (Sold sep.). Two subwoofers of the same model may be connected simultaneously to the receiver.
Easy Listening
Listen to all your favorite tracks with audio streaming via Bluetooth®,11 Wi-Fi, Chromecast built-in,7 Spotify Connect, and Apple AirPlay®.6
Built for custom install
Support for Integration
With support for the leading control and remote monitoring systems like Control4, Savant, Crestron, and OvrC, these ES receivers are built for integration.6
Zone 2 & Zone 3
Flexible multi-zone distribution capability.
Flexible Setup Options
STR-AZ7000ES
Sony's flagship STR-AZ7000 13.2 CH 8K A/V Receiver featuring renowned ES Quality. With 150 watts,2 the STR-AZ7000ES delivers cinematic sound with crystal-clear music reproduction, object-based surround sound, and support for Dolby Atmos®, DTS:X®, and 360 Reality Audio.6
STR-AZ5000ES
11.2 CH 8K A/V Receiver featuring renowned ES Quality. With 130 watts,2 the STR-AZ5000ES delivers cinematic sound with crystal-clear music reproduction, object-based surround sound, and support for Dolby Atmos®, DTS:X®, and 360 Reality Audio.6
STR-AZ3000ES
9.2 CH 8K AV Receiver featuring renowned ES Quality. With 120 watts,2 the STR-AZ3000ES delivers cinematic sound with crystal-clear music reproduction, object-based surround sound, and support for Dolby Atmos®, DTS:X®, and 360 Reality Audio.6
STR-AZ1000ES
7.2 CH 8K A/V Receiver featuring renowned ES Quality. With 100 watts,2 the STR-AZ1000ES delivers cinematic sound with crystal-clear music reproduction, object-based surround sound, and support for Dolby Atmos®, DTS:X®, and 360 Reality Audio.6
